Description

Vesper Cortex V1 – VHF Radio w/SOTDMA SmartAIS Remote Vessel Monitoring – Works Worldwide [010-02814-20]

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form. **

Click here to download form.

Cortex V1 – VHF Radio with SOTDMA SmartAIS & Remote Vessel Monitoring – Works Worldwide

Advanced multi-station VHF with intuitive touchscreen operation. Full Class B SOTDMA with smartAIS send and receive and integrated no-loss splitter. Monitor and control onboard systems and keep alerted on board or ashore from your smartphone.

Product Overview:

• VHF – The world’s most advanced VHF with multi-station wireless touchscreen handsets
• AIS – Class B SOTDMA smartAIS transponder with an integrated splitter
• Monitor – Tra

Features:

• This Cortex model is made to function Worldwide

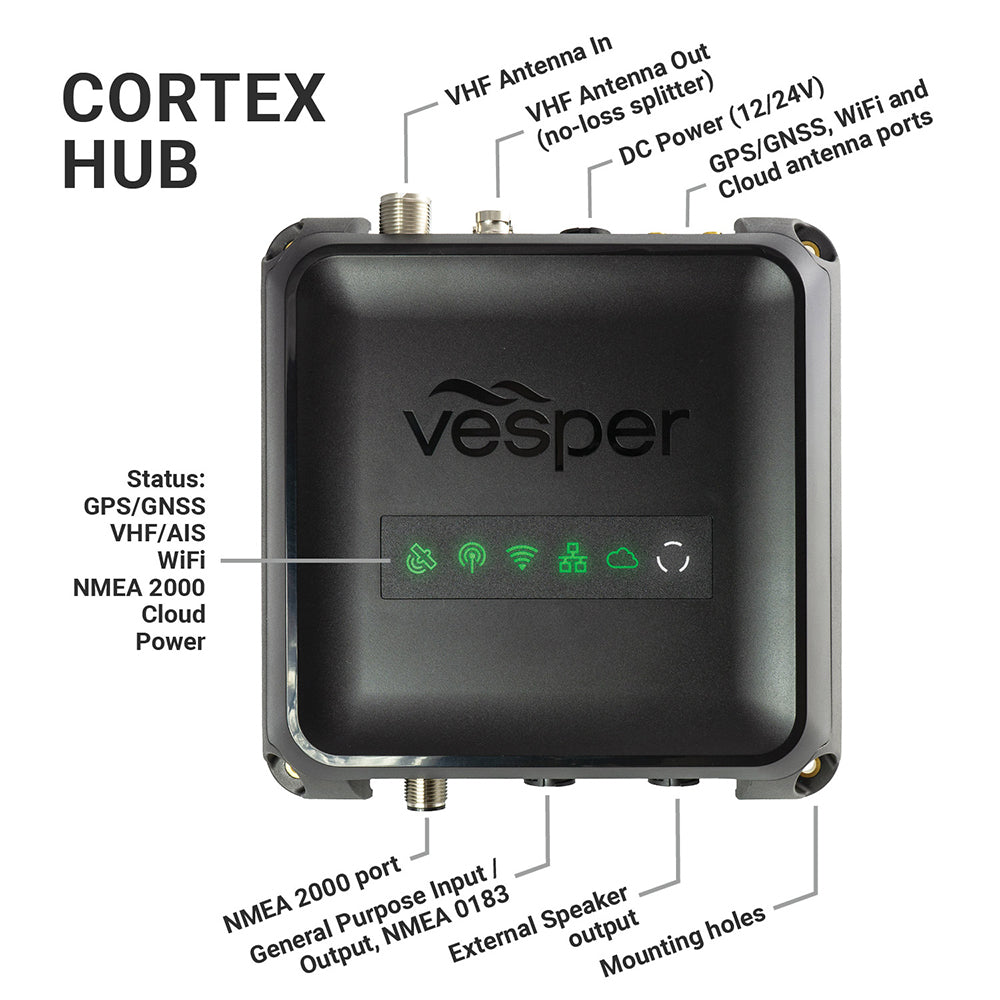

• Includes M1 hub, tethered H1 handset, and accessories
• Built-in Class B SOTDMA with no-loss antenna splitter
• Built-in WiFi and Cellular connectivity on monitoring onboard and ashore
• Low power consumption hub
• 10Hz GPS antenna

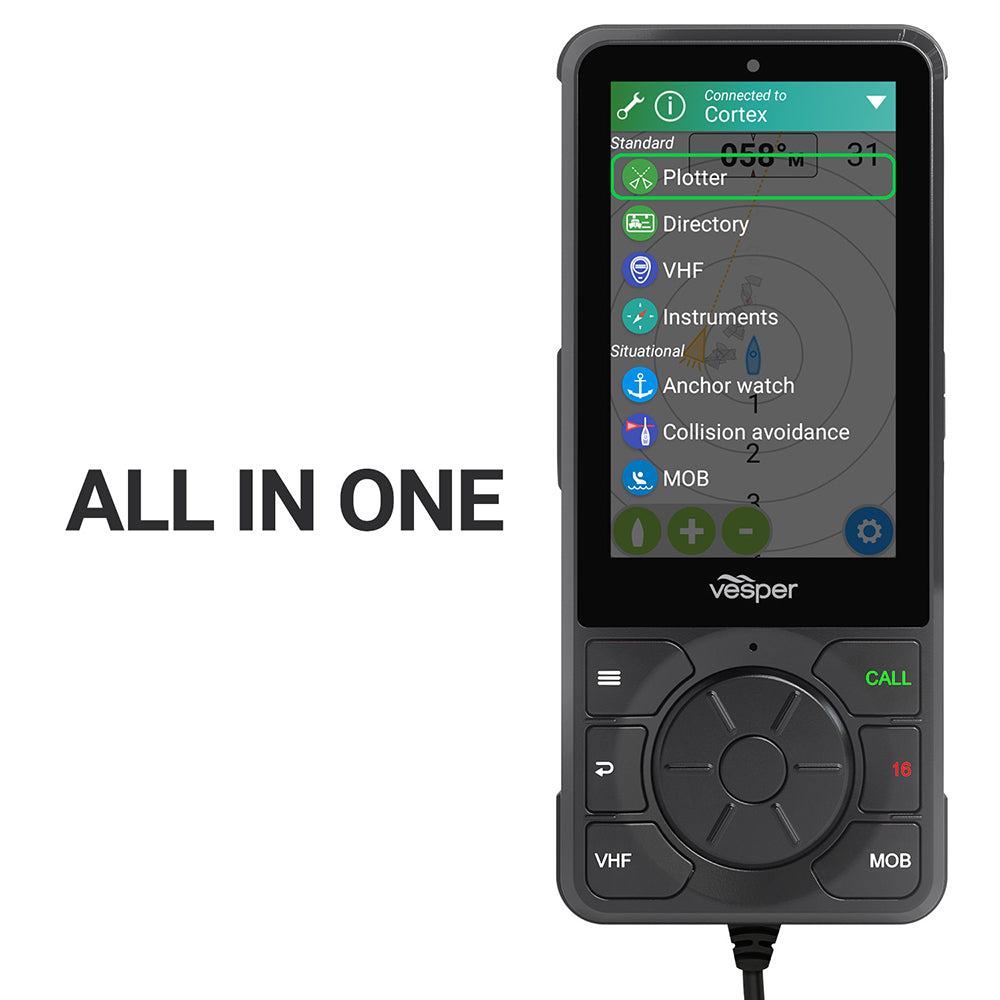

• 4-inch multi-touch display with gorilla glass for maximum durability
• Single-hand operation with the click wheel and dedicated buttons
• Wet and glove-capable touchscreen
• Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun
• 85 dBA of crystal-clear audio
• Combined AIS and VHF display with voiced alerts
• Touch a vessel onscreen for direct calling (DSC)
• ck, and control, whether onboard or ashore

VHF Reimagined

• A revolution in marine technology that will change your VHF experience forever
• An intuitive touchscreen that is engineered for durability to withstand the rigors of the harsh marine environment
• Audio that’s as loud as a train but clear as a bell
• The future of VHF is here

The power of VHF and AIS combined

• Cortex is the world’s first VHF with high speed SOTDMA AIS transponder technology, making your boat visible to others
• A built-in heading sensor tells other vessels your direction, helping them more accurately predict potential collisions
• Be armed with critical information about vessels, AIS marks (AtoNs) and man overboard devices on your MFD, mobile or Cortex handset

Collision Avoidance & One-Touch DSC

• Cortex continuously calculates crossing situations and generates collision alarms for critical action
• Alerts if your anchor is dragging, and activates MOB alarms for immediate retrieval
• Instead of ambiguous bells or tones, Cortex sounds the alarm with voiced alerts that escalate until acknowledged
• Continuously view crossing situations, navigation light sectors, and complete trial maneuvers while talking on the VHF radio
• Initiate direct calls (DSC) with other vessels by simply tapping the vessel on your handset touchscreen
• Initiate VHF calls to friends or quickly hail another vessel when every second counts

Monitor

• Cortex combines built-in sensors and NMEA2000 connectivity with free basic monitoring
• Using cellular connectivity, you can view twice-daily updates of power, location, wind, depth, bilge, temperature, and more on their smartphones
• The Cortex Monitor Premium subscription unlocks real-time vessel status, instant alerts, and device control for boat systems like refrigerators, icemakers, lights, or heaters

Anchor Watch

• Sleep soundly or explore with abandon knowing that your boat is exactly where you anchored it
• By combining your position and heading, Cortex will determine if your anchor drags
• If your boat moves outside your anchor swing radius the alarm will sound on Cortex handsets and your smartphone
• Receive alerts while ashore via the Cortex Monitor App on your smartphone
• Cortex will keep watch and alert you about changes in water depth, wind speed, or direction while you are anchored

Specifications:

• AIS Class: B
• AIS: Yes
• Antenna Included: Yes
• Built-In GPS: No
• Color: Black
• Display Included: No
• Function: Receive/Transmit
• GPS Included: Yes
• NMEA 2000: Yes
• Remote Mic Capable: No
• Scrambler Capable: No
• Box Dimensions: 6″H x 9″W x 13″L WT: 6.3 lbs
• UPC: 753759306793
