Veratron Pyrometer Sensor – 100-900C/250-1650F [N03-320-264]

Pyrometer Sensor – 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

• Plug-and-Play installation and configuration
• NMEA 2000® certified

Technical Specifications:

• Temperature medium – Exhaust gas – Coolant – Water – Air – Engine oil – Transmission oil – Fuel
• Input Signal – LIN bus
• Operating Voltage – 6 – 24 VDC
• Pyrometer Sensor
• Thermocoupler Element
• Measurement Range – 100-900°C/250-1650°F
• Communication – Analog
• Signal Output – 0 – 37 MV TC
• Sensor Connector – Ring Tongue
• Thread – R 1/4″ Male
• Warning Contact – None
• Connector Type – Kabeloog

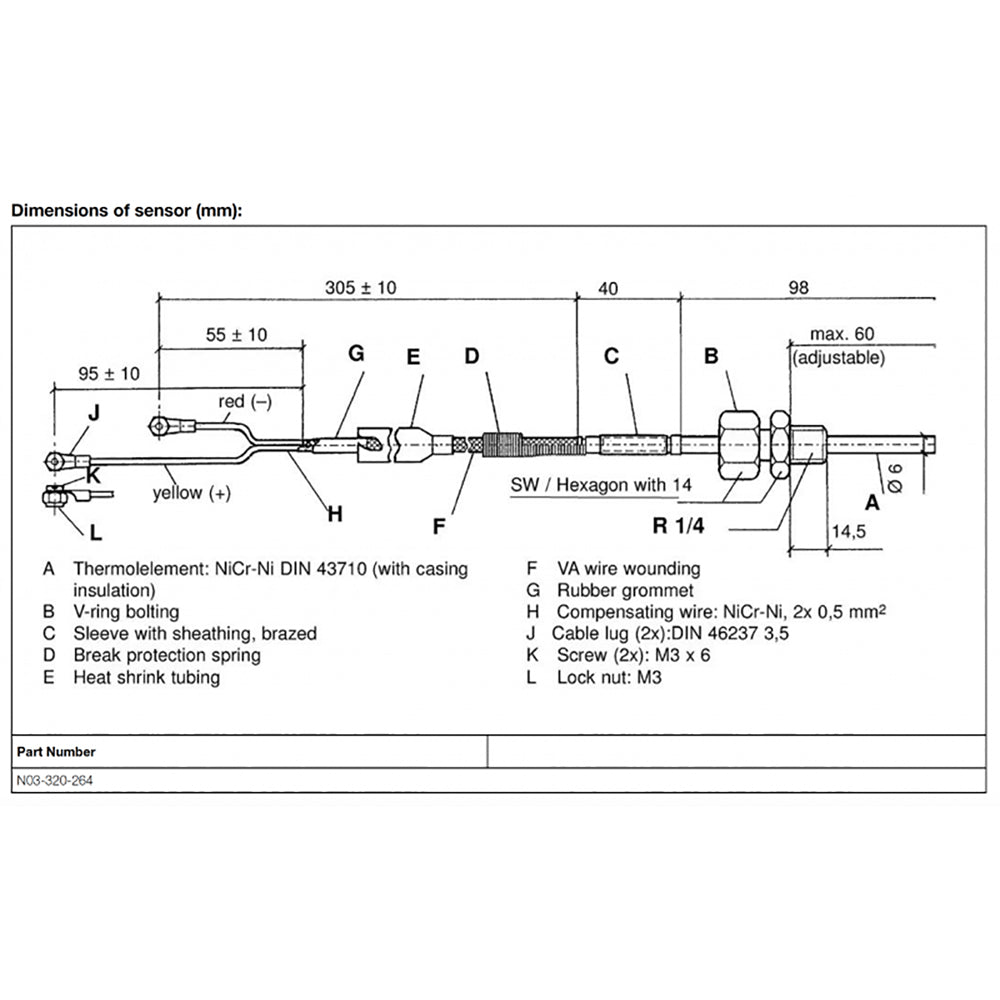

• Sender element length + thread (L) – Adjustable maximal 60 mm
• Sensor diameter – 6 mm
• Torque – 20 Nm

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Diameter (mm): N/A
• Diameter (Inches): N/A
• Color: Black
• Box Dimensions: 1″H x 4″W x 16″L WT: 0.15 lbs
