TSR SSR-10DA SSR-40DA SSR 25A 60A 80A 100A Three Phase SSR Solid State Relay Online Hot Sale

Original price was: $24.59.Current price is: $9.84.

SKU: US-7386866090177 Categories: , Tags: ,

Description

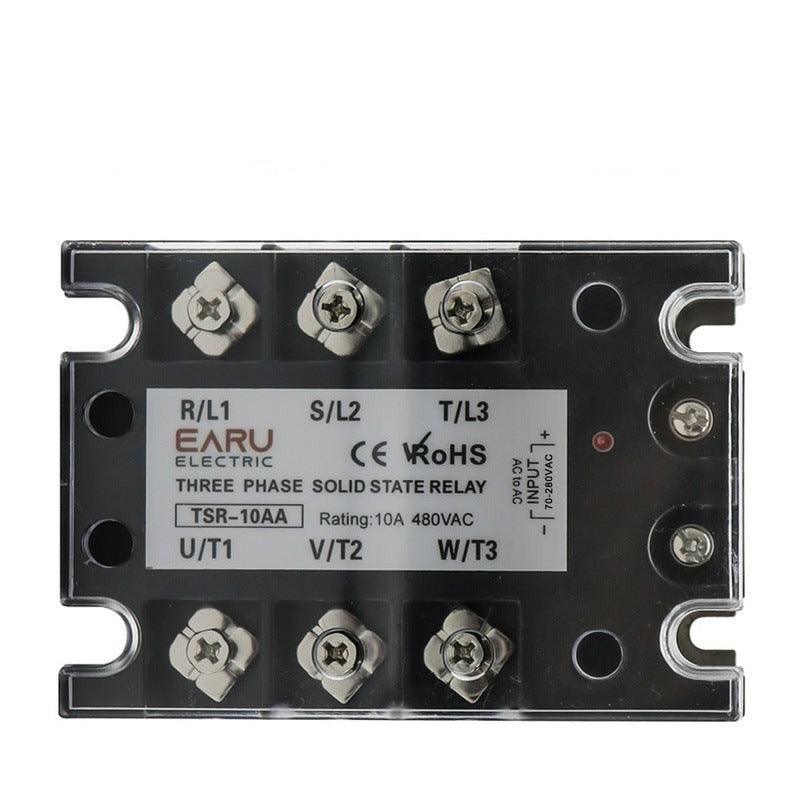

TSR SSR-10DA SSR-40DA SSR 25A 60A 80A 100A Three Phase SSR Solid State Relay

SPECIFICATIONS

TSR  SSR-10DA SSR-40DA SSR 25A 60A 80A 100A Three Phase SSR Solid State Relay DC Control AC 480V 5-32V Input Aluminum Heatsink

Usage: General Purpose

Theory: Solid State Relay

Size: 150.8mm*75.5mm*37.5mm

Rating: 10A 480V

Protect Feature: Sealed

Power Source: DC

Origin: Mainland China

Net Weight: 237.5g

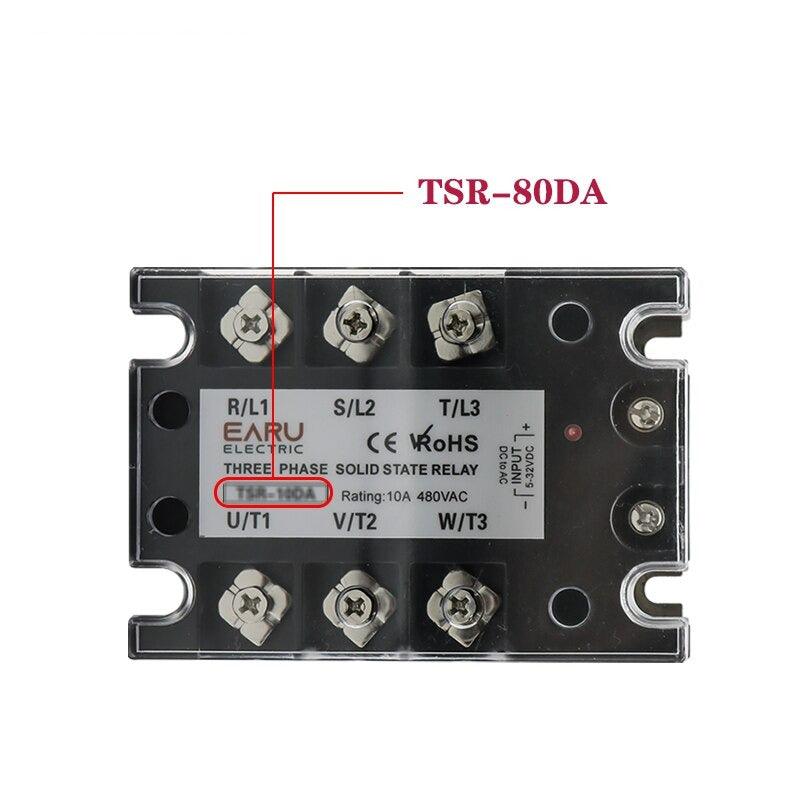

Module Number 2: SSR-80DA/SSR-100DA/SSR-200DA

Module Number 1: SSR-10DA/SSR-25DA/SSR-40DA/SSR-60DA

Load Current: 10A 25A 40A 60A 80A 100A 120A 200A

Control Voltage: 5-32 VDC

Control Type: DC Control AC

Contact Load: Low Power

Certification: CE

Step 1: Choose a correct control mode
AA– AC Control AC
DA– DC Control AC


Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.


Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.

Additional information

Size

10A, 25A, 40A, 60A, 80A, 100A, 200A, Sink3-A, Sink3-B, Sink3-C
