Tripping Time Adjustable: 0.1s-0.5s(time delay ELCB)
Distribute Electric Energy – Mainly used to distribute electric energy and protect circuits and power equipment from overload, short circuit, earth leakage, under voltage and other faults
Good Flame Retardancy – The thermosetting material has good flame retardancy, will only gradually carbonize even if encounters an open flame, and will not burn, so that is safe
Suitable For Extreme Environments – Rated current for 125A, frequency is 50/60Hz. Environmental operating temperature from 20℃60℃, suitable for more extreme environments
Short Circuit And Overload Protection – Possess the characteristics of small size, short circuit protection, overload protection, flame retardant shell, high segmentation, short arcing, etc.
Protection Of Motor – Can also be used for infrequent starting and overload, short circuit and under voltage protection of the motor
If need 3 Phase RCBO with remote control of Shunt trip, pls check link:Shunt Trip Breaker Product Description

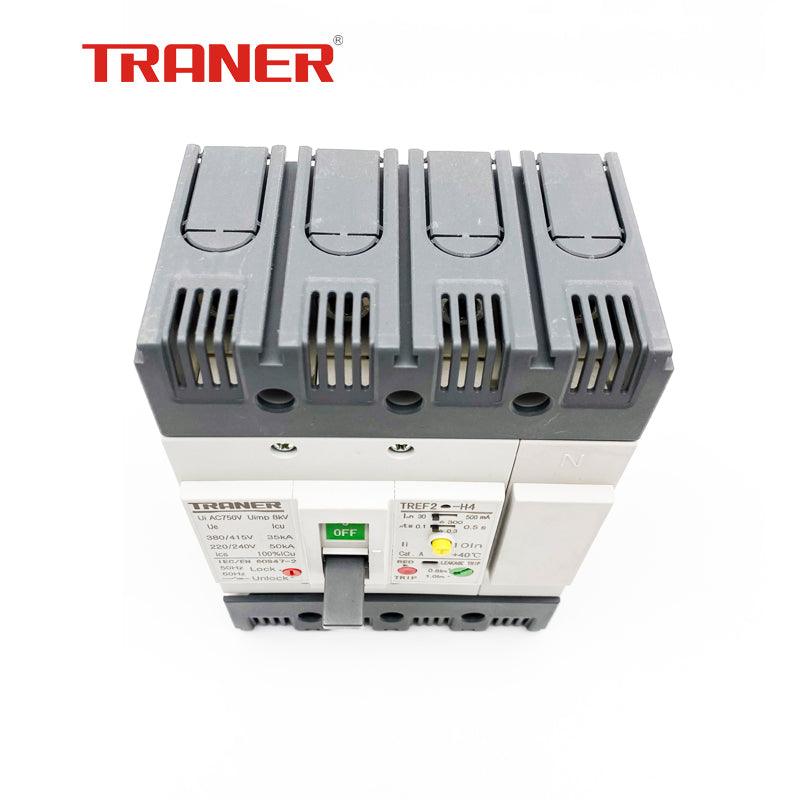

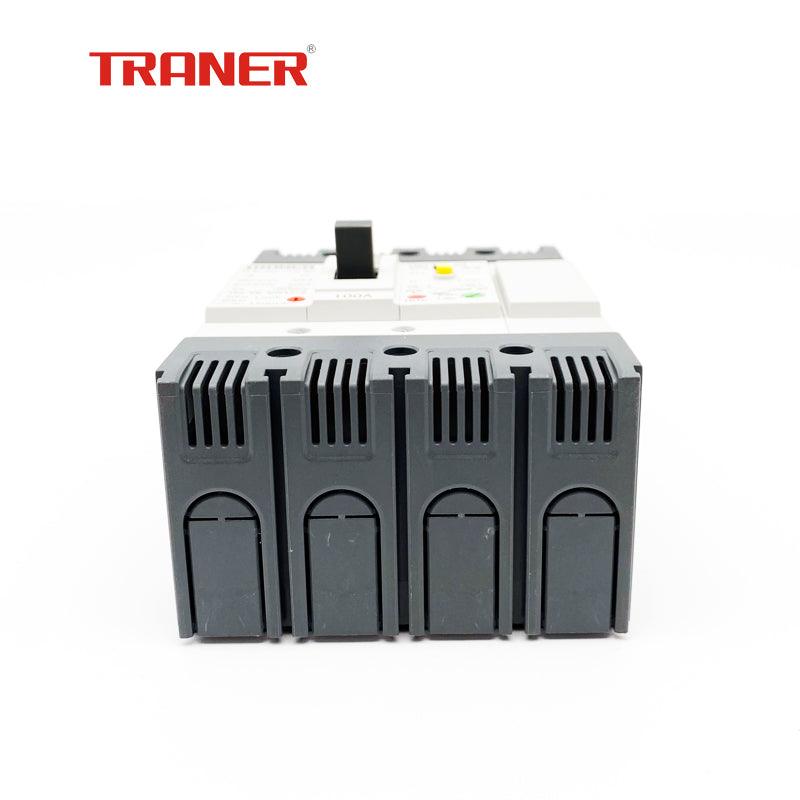

Item Type: Moulded Case Circuit Breaker Model: TREF2-125/4P
Product Dimension(L*W*H): 130x100x60mm Material: Thermoplastic PA6+ contact copper Frame Current(AF): 125A Frequency: 50/60Hz Rated Insulation Voltage (Ui): AC 400V Rated Voltage (Ue): AC 400V Rated Impulse Withstand Voltage (Uimp): 8KV
Rated short-circuit Breaking Capacity, Icu: 8kA Ics=100%Icu Cat A
Package List:
2 x Terminal Cover 1 x Circuit Breaker 6 x Partition Board 1 x Screw Pack
