Sale!

Piezoelectric Pressure Sensor 0-10v Membrane Pressure Transducer with LED Display 100bar 0-10v Water Pressure Transmitter Online Hot Sale

Original price was: $88.56.Current price is: $26.57.

Measuring Range

Clear

SKU: US-7362144305345 Categories: 0, electrical center b2c Tag: 2088 pressure transmitter

Description

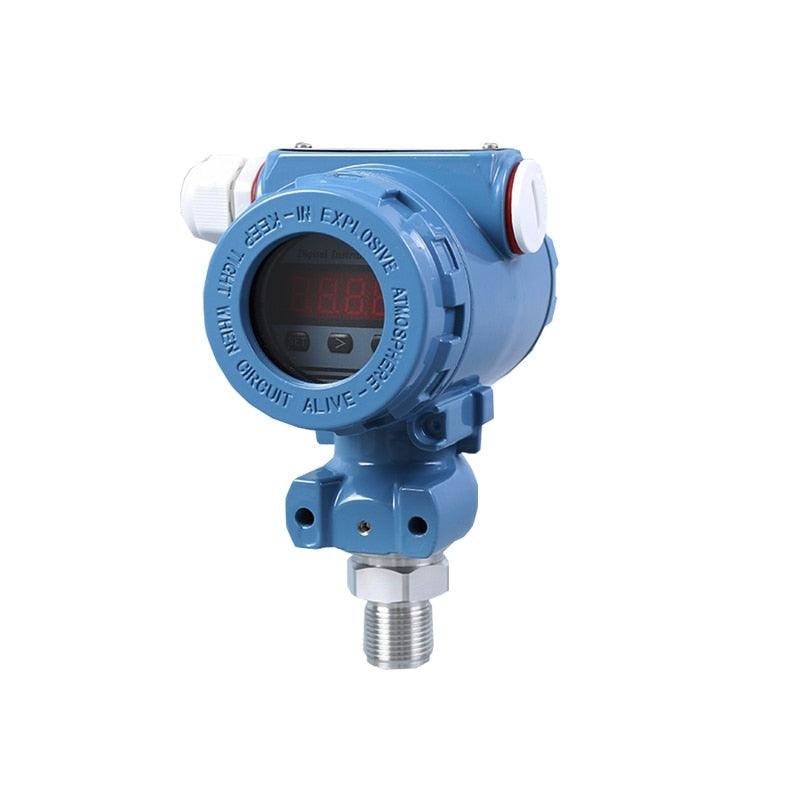

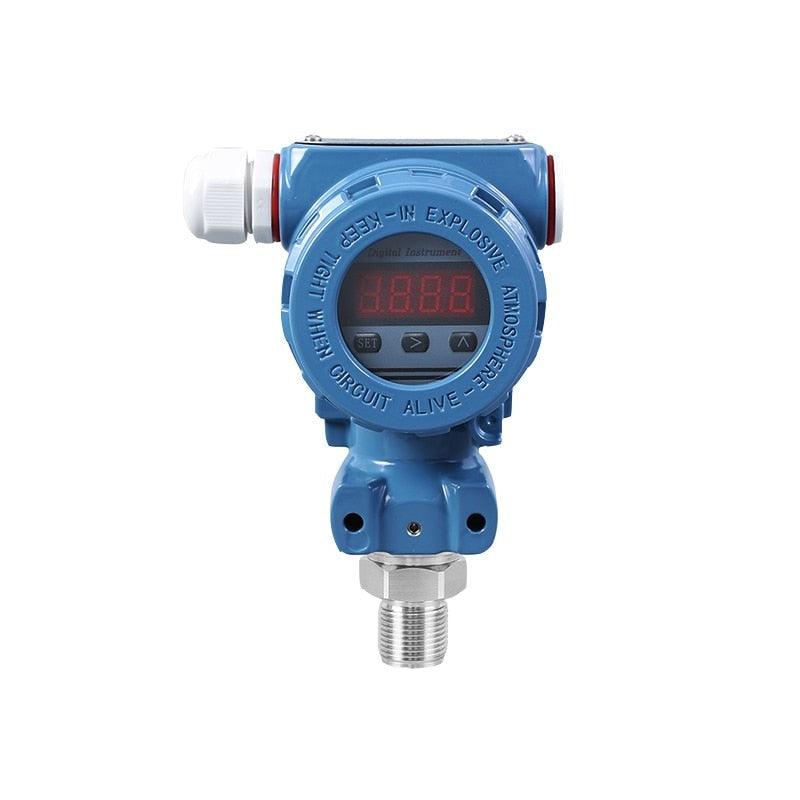

Piezoelectric Pressure Sensor 0-10v Membrane Pressure Transducer with LED Display 100bar 0-10v Water Pressure Transmitter

Piezoelectric Pressure Sensor 0-10v Membrane Pressure Transducer with LED Display 100bar 0-10v Water Pressure Transmitter

Sensor: Diffusion silicon chip

Product name: Pressure transmitter

Power supply: DC24V

Output signal: 0-10V dc

Origin: Mainland China

Model Number: ELPT400

Measure range: -0.1~0~100MPa

Max Measuring Range: 400 Bar & Above

Material: Stainless Steel

Connection thread: M20*1.5

Certification: CE,FCC,RoHS

Brand Name: KEJUN

Accuracy: 0.2%FS

Piezoelectric Pressure Sensor 0-10v Membrane Pressure Transducer with LED Display 0-5v 100bar Water Pressure Transmitter

This link is special for:

1. Measuring range: the one you choose

2. Output signal: 0-10Vdc

3. Power supply: DC24V

4. Connection thread: M20*1.5

Notes:

What we can make:

1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).

2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc

4. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc

2088 Transmitter DATA SHEET DOWNLOAD

Measuring Range	-0.1 to 1Mpa, 0-0.1Mpa, 0-0.16Mpa, 0-0.25Mpa, 0-0.4Mpa, 0-0.6Mpa, 0-1Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4Mpa, 0-6Mpa, 0-10Mpa, 0-16Mpa, 0-20Mpa, 0-25Mpa, 0-30Mpa, 0-40Mpa, 0-50Mpa, 0-60Mpa, Customization
