Description

PID Digital Intelligent Industrial Temperature Controller K Universal Input REX-C100 C400 C700 C900 Thermostat SSR Relay Output

SPECIFICATIONS

PID Digital Intelligent Industrial Temperature Controller K Universal Input REX-C100 C400 C700 C900 Thermostat SSR Relay Output

Usage: Industrial

Type: K

Theory: Temperature Controller

Style: Standing Station

Power: AC100-240V

Output: Relay/SSR

Model Number4: REX-C900

Model Number3: REX-C700

Model Number2: REX-C410

Model Number1: REX-C400

Model Number: REX-C100

Measure Type: K

Measure Type: K,J,E,R,Js,B,N,T,PT00,Cu50

Max Measuring Temperature: 120°C & Above

Is Smart Device: NO

Display Type: DIGITAL

Display Size: 1.9 Inches & Under

USER’S MANUAL DOWNLOAD

Specifications:

• Display: Dual display for Celsius (C)

• Range: -0-400C (Only when with the factory K type thermocouple)

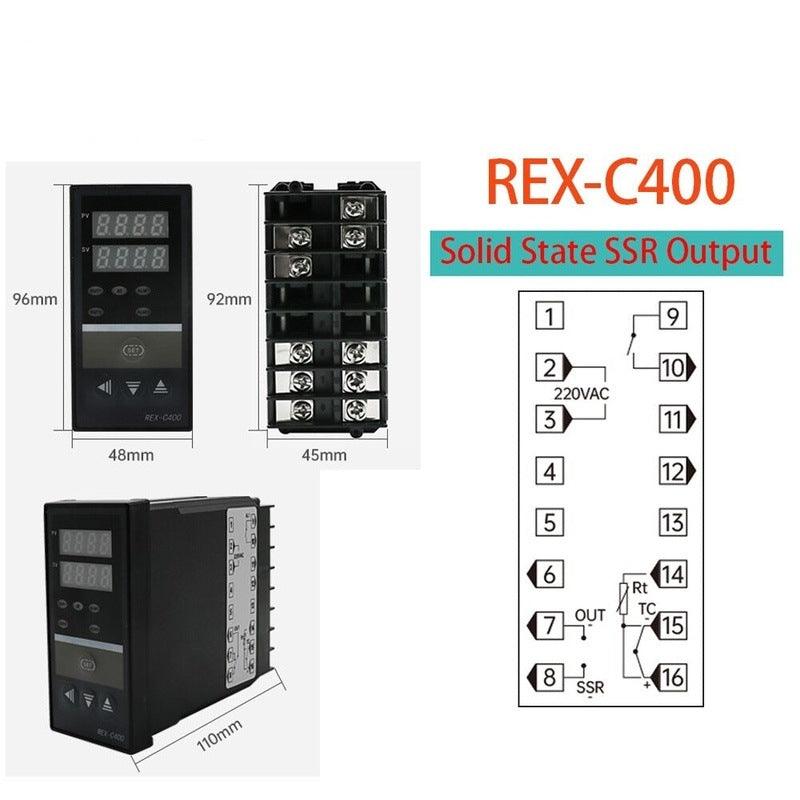

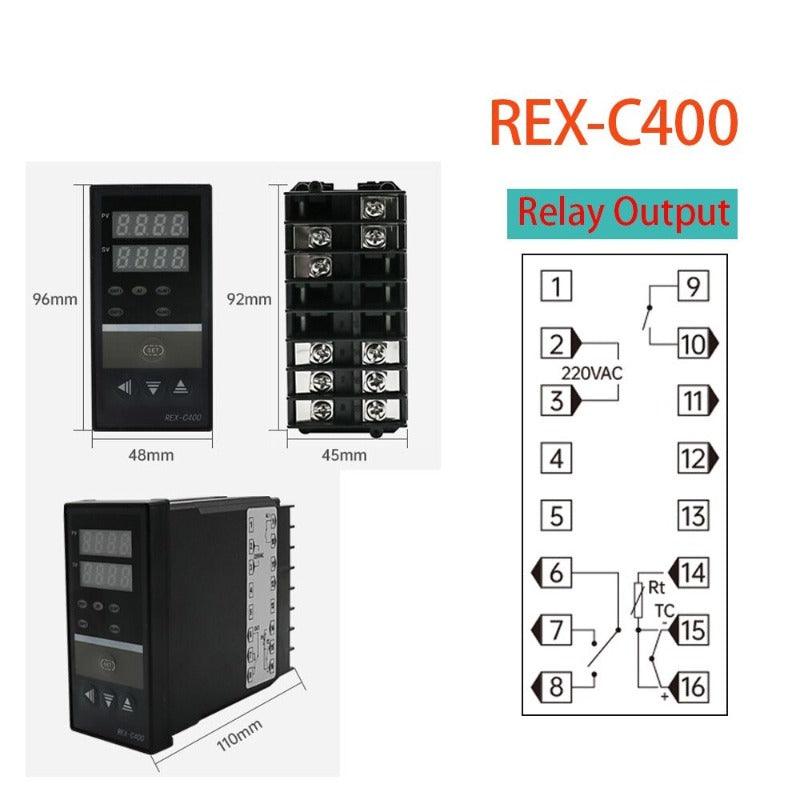

• Main Output: SSR/Realy

• PID cooling/heating control

• 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC

• 7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm

• Accuracy: 0.5%

• Input:K,J,E,R,Js,B,N,T,PT00,Cu50

• Individually programmable PID control parameters.P, I, d, controlling period, digital filter coefficient, and more

• SSR control ready to connect

• Compact design:DIN 1/8 great form-factor to be included/build-in to your product.

• Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.
