Description

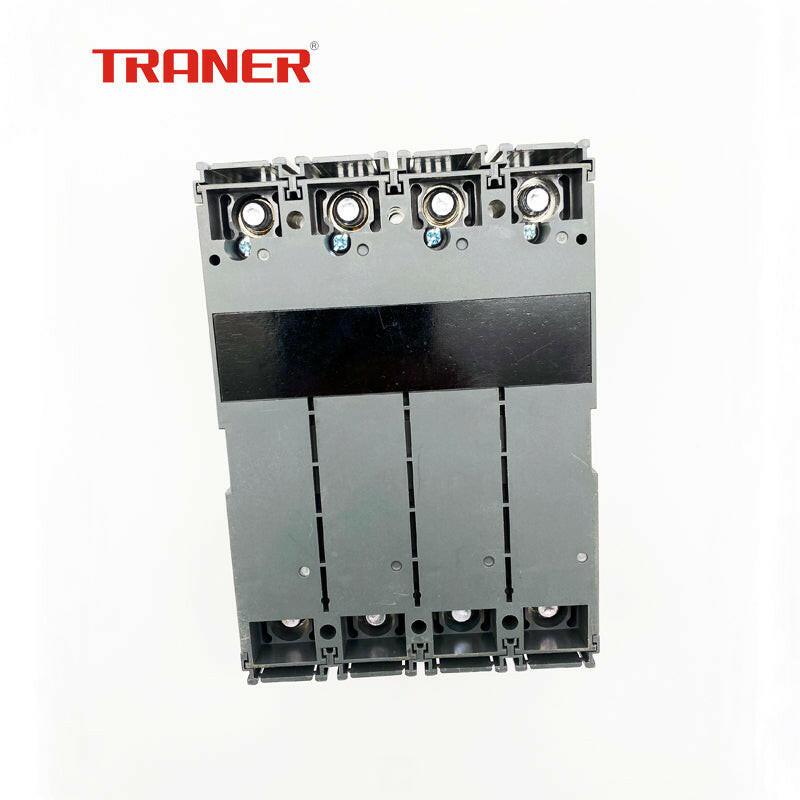

MCCB 3Phase TRMF2-125 415V/35kA 4P 15-125A Mould Case Circuit Breaker

 Specification

4 Pole MCCB Thermal Adjustable TRMF2-125 415V/35kA 4P 15-125A Mould Case Circuit Breaker

please send us email to : [email protected] for bulk purchasing

About this item

• Thermal Adjustable Min: 0.8In-Max:1In
• Distribute Electric Energy – Mainly used to distribute electric energy and protect circuits and power equipment from overload, short circuit, under voltage and other faults
• Good Flame Retardancy – The thermosetting material has good flame retardancy, will only gradually carbonize even if encounters an open flame, and will not burn, so that is safe
• Suitable For Extreme Environments – Rated current for 100A, frequency is 50/60Hz. Environmental operating temperature from 20℃60℃, suitable for more extreme environments
• Short Circuit And Overload Protection – Possess the characteristics of small size, short circuit protection, overload protection, flame retardant shell, high segmentation, short arcing, etc.
• Protection Of Motor – Can also be used for infrequent starting and overload, short circuit and under voltage protection of the motor

Product Description

Item Type: Moulded Case Circuit Breaker/MCCB 3Phase
Model: TRMF2-125/4P

Dimension(L*W*H): 130x100x60mm
Material: Thermoplastic PA6+ contact copper
Frame Current(AF): 125A
Frequency: 50/60Hz
Rated Insulation Voltage (Ui): AC 415V
Rated Voltage (Ue): AC 415V
Rated Impulse Withstand Voltage (Uimp): 8KV

Rated short circuit Breaking Capacity ,Icu: 35kA
Ics=75%Icu Cat A
32 a mccb,40 a mccb,4pole mccb,mccb 4p,125a tpn mccb,4p 100a mccb,63a 4p mccb,mccb 4p 100a
Package List:

2 x Terminal Cover

6 x Insulation Barrier
1 x Circuit Breaker
1 x Screw Pack
