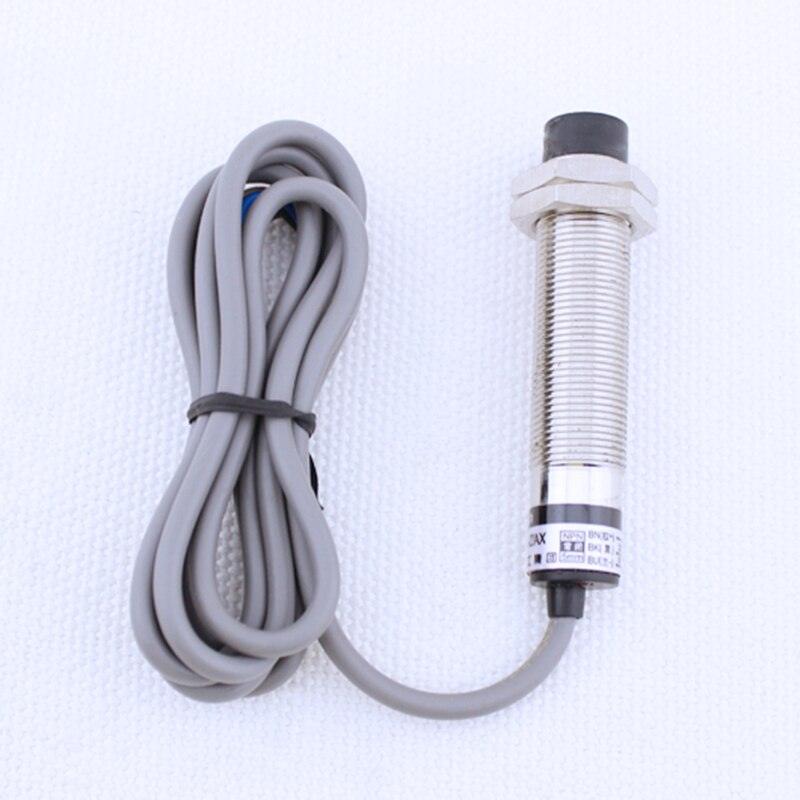

M14 3mm 5mm DC6~36V Cylinder Inductive Proximity Sensor Switch LJ14A3-3(5)

SPECIFICATIONS

M14 3mm 5mm DC6~36V Cylinder Inductive Proximity Sensor Switch

LJ14A3-3(5)-Z/BX/AX/CX/BY/AY/CY/EX/DX

2/3/4-wire PNP/NPN NO NC

Wire:: 2/3/4-Wire type

Warranty: 1Y

Voltage:: DC6~36V

The diameter: 14mm

Switch Type:: PNP/NPN NO/NC

Switch Type: Proximity Switch

Product Name:: Proximity Sensor switch

Origin: CN(Origin)

Model Number: LJ14A3-3(5)-Z/BX/AX/CX/BY/AY/CY/EX/DX

Material: Copper

Item Type: Switches

Features: Proximity Sensor switch

Detecting distance:: 3mm/5mm

Current: 200mA

LJ14A3-3-Z/BX: DC NPN 3-wire Normally Open 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/AX: DC NPN 3-wire Normally Close 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/CX: DC NPN 4-wire Normally Open and Normally Close 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/BY: DC PNP 3-wire Normally Open 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/AY: DC PNP 3-wire Normally Close 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/CY: DC PNP 4-wire Normally Open and Normally Close 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/EX: DC Two-wire Normally Open 14mm diameter ; 3mm detection distance
LJ14A3-3-Z/DX: DC Two-wire Normally Close 14mm diameter ; 3mm detection distance
LJ14A3-5-Z/BX: DC NPN Normally Open 3-wire type 14mm diameter ; 5mm detection distance
LJ14A3-5-Z/AX: DC NPN Normally Close 3-wire type 14mm diameter ; 5mm detection distance
LJ14A3-5-Z/CX: DC NPN 4-wire Normally Open and Normally Close 14mm diameter ; 5mm detection distance
LJ14A3-5-Z/BY: DC PNP Normally Open 3-wire  type 14mm diameter ; 5mm detection distance
LJ14A3-5-Z/AY: DC PNP Normally Close 3-wire type  14mm diameter ; 5mm detection distance
LJ14A3-5-Z/CY: DC PNP 4-wire Normally Open and Normally Close 14mm diameter ; 5mm detection distance
LJ14A3-5-Z/EX: DC Two-wire Normally Open 14mm diameter ; 5mm detection distance
LJ14A3-5-Z/DX: DC Two-wire Normally Close 14mm diameter ; 5mm detection distance
