Description

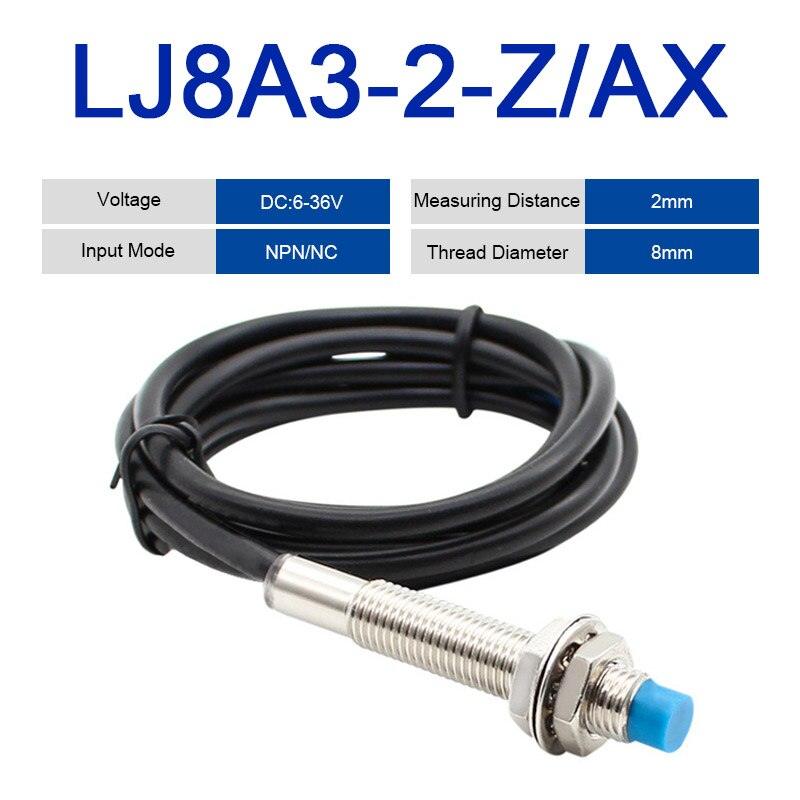

LJ8A3-2-Z-BX/AX Proximity Switch PNP/NPN NO NC M8 2mm Detect distance Inductive Sensor Switch

SPECIFICATIONS

LJ8A3-2-Z-BX/AX Proximity Switch BY/AY/EX/DX/DZ/EZ

PNP/NPN NO NC M8 2mm Detect distance Inductive Sensor Switch

Wire:: 2/3-Wire type

Warranty: 1Y

Voltage:: DC6~36V

The diameter: 8mm

Switch Type:: PNP/NPN NO/NC

Switch Type: Proximity Switch

Product Name:: Proximity Sensor switch

Origin: CN(Origin)

Model Number: LJ8A3-1(2)-Z/BX/AX/BY/AY/EX/DX

Material: Alloy

Item Type: Switches

Features: Proximity Sensor switch

Detecting distance:: 2mm

Current: 200mA

LJ8A3-2-Z/BX: DC NPN NO 3-wire type 8mm diameter ; 2mm detection distance

LJ8A3-2-Z/BY: DC PNP NO 3-wire  type 8mm diameter ; 2mm detection distance

LJ8A3-2-Z/AX: DC NPN NC 3-wire type 8mm diameter ; 2mm detection distance

LJ8A3-2-Z/AY: DC PNP NC 3-wire type 8mm diameter ; 2mm detection distance

LJ8A3-2-Z/EX: DC NO 2-wire type 8mm diameter ; 2mm detection distance

LJ8A3-2-Z/DX: DC NC2-wire type 8mm diameter ; 2mm detection distance

LJ8A3-2-J/DZ: AC NC 2-wire type 8mm diameter ; 2mm detection distance

LJ8A3-2-J/EZ: AC NO 2-wire type 8mm diameter ; 2mm detection distance
