Description

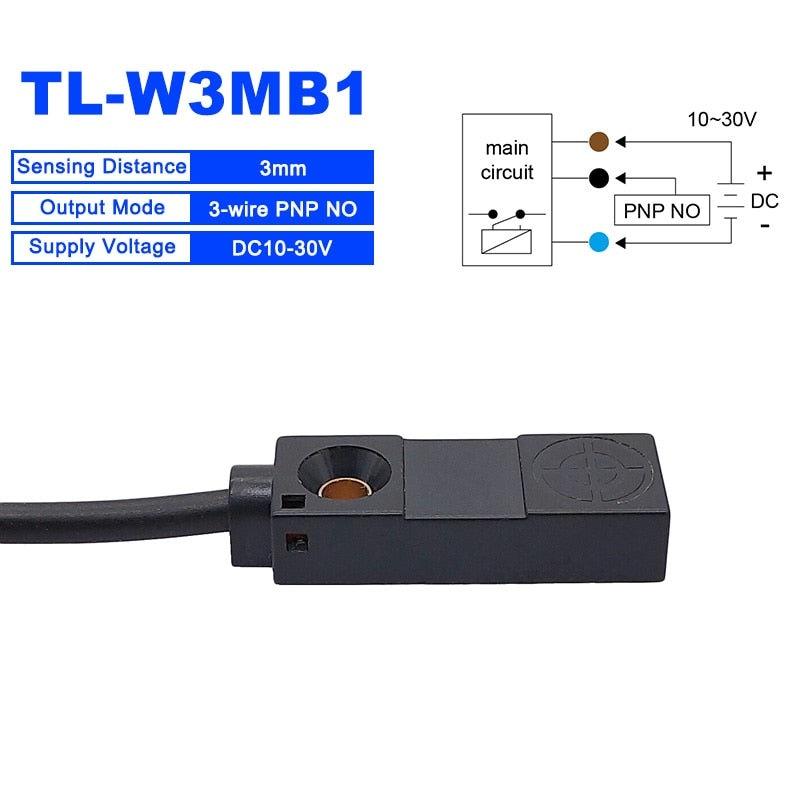

Inductive Proximity Switch 3-wire Sensor Switch NPN PNP NO NC Metal Detector TL-W3MC1

SPECIFICATIONS

Inductive Proximity Switch 3-wire Sensor Switch NPN PNP NO NC

Metal Detector TL-W3MC1 TL-W3MC2 TL-W3MB1 TL-W3MB2 metal sensor

Warranty: 1 year

Switch Type: Proximity Switch

Origin: CN(Origin)

Model Number: TL-W3MC1

Material: Plastic

Item Type: Switches

Is Smart Device: No

Features: proximity switch

Current: 300mA

Certification: CCC

Product Name: inductive proximity switch

Switching frequency: 1KHz

Response time: ＜0.5ms

Response frequency: 50Hz

Indicator light: LED light

Insulation resistance: 50mΩ

Working voltage: 10-24VDC

Protection level: IP67

Maximum load current: 300mA

Working temperature: -25℃-75℃

Detection distance: 3mm

Product material: ABS

Working current: 300mA

Reverse polarity protection: YES
