Description

Garmin GT36UHD-TM Transom Mount Transducer [010-13072-00]

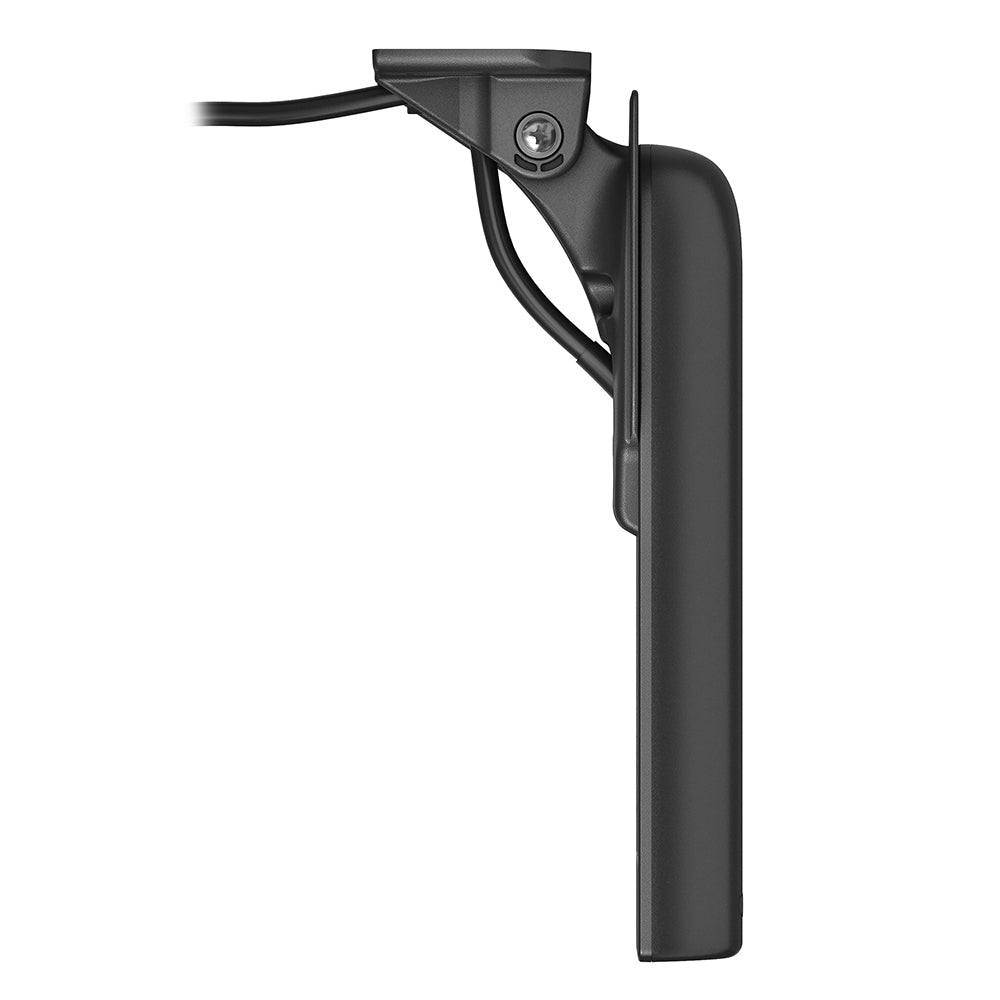

GT36UHD-TM Transom Mount Transducer

Less time finding. More time fishing. The GT36 transducer offers ultimate versatility, featuring Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz and Ultra High-Definition ClearVü scanning sonar for top performances at all depths. Vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. This transducer includes transom and trolling motor mount hardware.

Features:

• Get Ultra High-Definition SideVü scanning sonar with 20% greater range at 1 MHz and Ultra High-Definition ClearVü scanning sonar
• 455 kHz SideVü scanning sonar lets you see up to 500’ on each side of your boat
• Three scanning sonar frequencies — 455 kHz, 800 kHz and 1 MHz — deliver top performances at all depths
• Vivid scanning sonar color palettes make it easy to distinguish targets and structure
• Easy to install with transom and trolling motor mount hardware

Specifications:

• Temperature: Yes
• Speed Included: No
• Pins: 12
• Mounting Style: Transom
• Imagining: Down/Side
• Chirp: Medium/Non Traditional
• Cable Length (Feet): 25′
• Box Dimensions: 4″H x 6″W x 12″L WT: 3.1 lbs
• UPC: 753759269319

Owner’s Manual (pdf)
Brochure (pdf)
