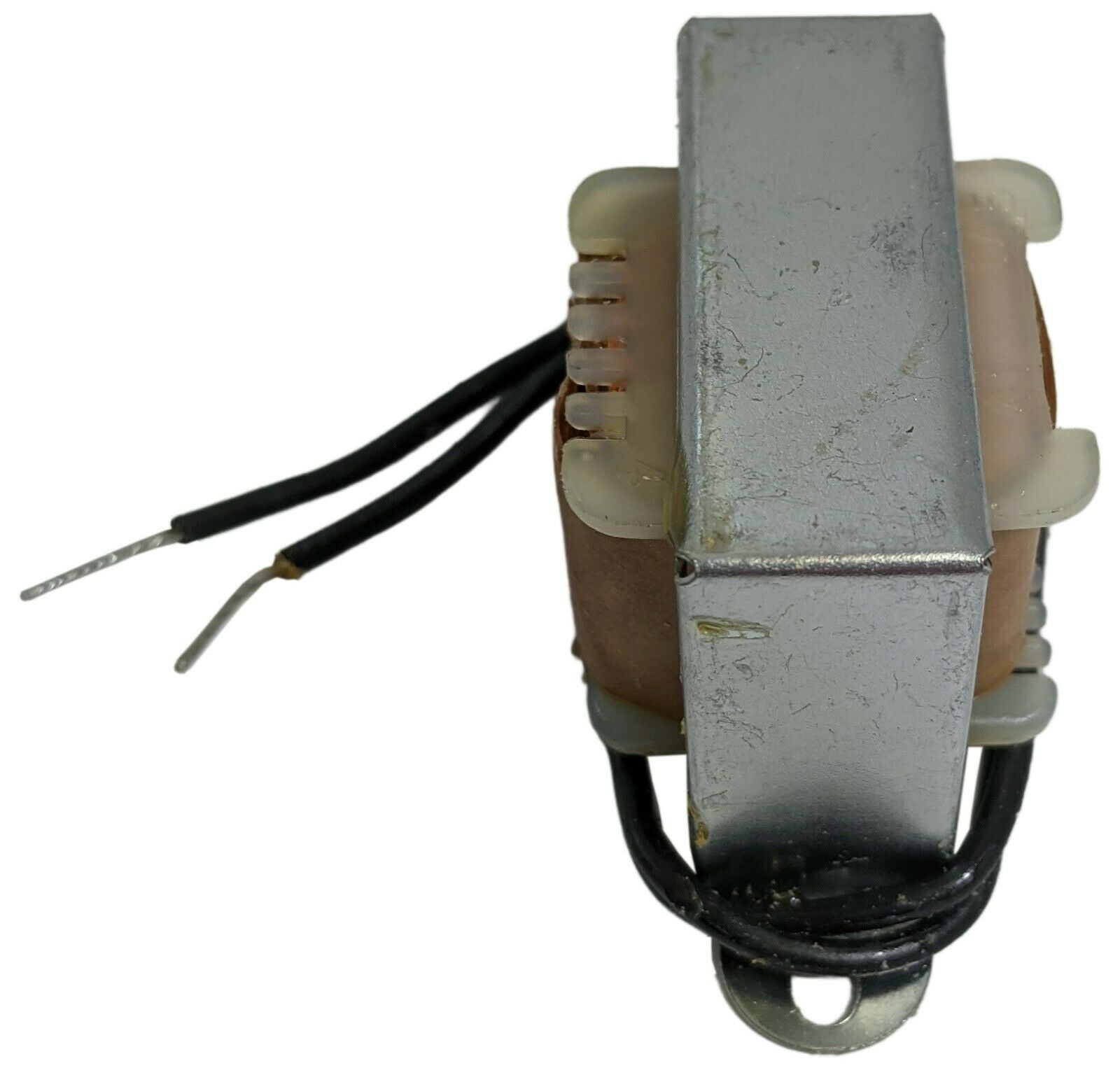

Filter Choke – Value: 7.0H, DC mA: 75, DC RES: 240
Value: 7.0H, DC mA: 75, DC RES: 240
Economical “open bracket” channel mount filter chokes are perfect for high voltage power supply filtering
Tolerance of 15% on both inductance & resistance.
Every unit is Hipot tested (100%) at 1,500 VAC
5″ long leads. Measures 2.4″ x 1.2″ x 1.3″. Mounting holes are about 2″ apart.
Value: 7.0H, DC mA: 75, DC RES: 240. Economical “open bracket” channel mount filter chokes are perfect for high voltage power supply filtering. Tolerance of 15% on both inductance and resistance. Inductance measured at rated D.C. current. 5″ long leads.
Measures 2.4″ x 1.2″ x 1.3″. Mounting holes are about 2″ apart. Weighs 5.59 ounces.
