CNTD Limit switch Micro switch Waterproof Motion Sensor CSA-081 CSA-041 Supply

Original price was: $17.80.Current price is: $7.12.

Color

Clear

Description

CNTD Limit switch Micro switch Waterproof Motion Sensor CSA-081 CSA-041

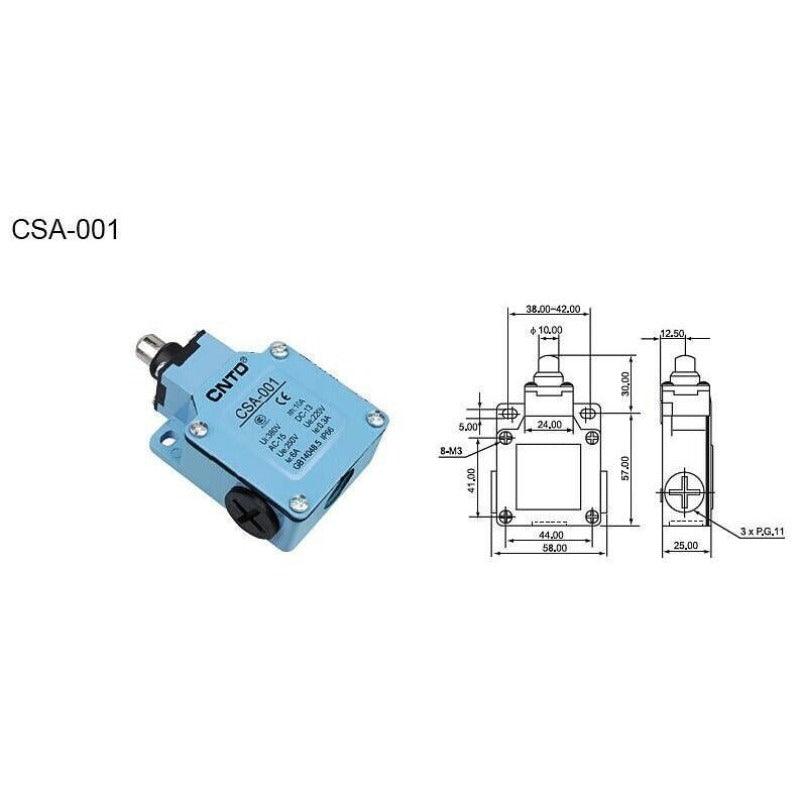

CNTD Limit switch Micro switch CSA-001 CSA-003 CSA-012 CSA-031 CSA-021 CSA-061 CSA-071 Waterproof Motion Sensor CSA-081 CSA-041

Origin: Mainland China
Certification: CCC
Model Number: CSA-051

Report Item / Suspicious Activity

Feature

Strong metal outer shell, swing arm max.±95°
Stainless steel idler wheel, punch and spring
Selective M18x1.5 cable gland

Specification

Characteristic

Double Break Mechanism	INO+INC Force Break snap action
Rated Voltage / Current	10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4
Contact Resistance	25mΩ max. (initial value)
Insultation Resistance	100mΩ min. (at 500VDC)
Dielectric Strength	1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC, 50/60 Hz for 1 minute between each terminal and ground
Electrical Life	500,000 at 10A 250VAC Resistive
Mechanical Life	10, 000, 000 operations min. (under rated conditions)
Operating Speed	5mm/s to 0.5m/s
Degree of Protection	IP66
Ambient Temperature Rised	Max 30 over ambient temperature at rated voltage/current
Conformed Standards	Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
Operating Temperature	-5~+65 (with no icing)
Storage Temperature	-5~+65(with no icing)
Ambient Operating Humdity	95% RH Max.
Shock Resistance	Mechanical durable: 1000m/s2 min.
Shock Resistance	Malfunction: 300m/s2 min.
Vibration Frequency	Malfunction: 10 to 55Hz, 1.5mm double amplitude
Terminal Screw Torsional Force	6-8 kgf-cm
Other Screw Torsional Force	Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare Wire Diameter	φ2 Max
Cable Diameter	φ12 Max(IP 65 if use cable φ8-9)
