500W air cooled spindle motor 48V ER11 chuck CNC 100V 0.5Kw Spindle motor for Engraving Online Sale

Original price was: $39.50.Current price is: $15.80.

Color

Clear

Description

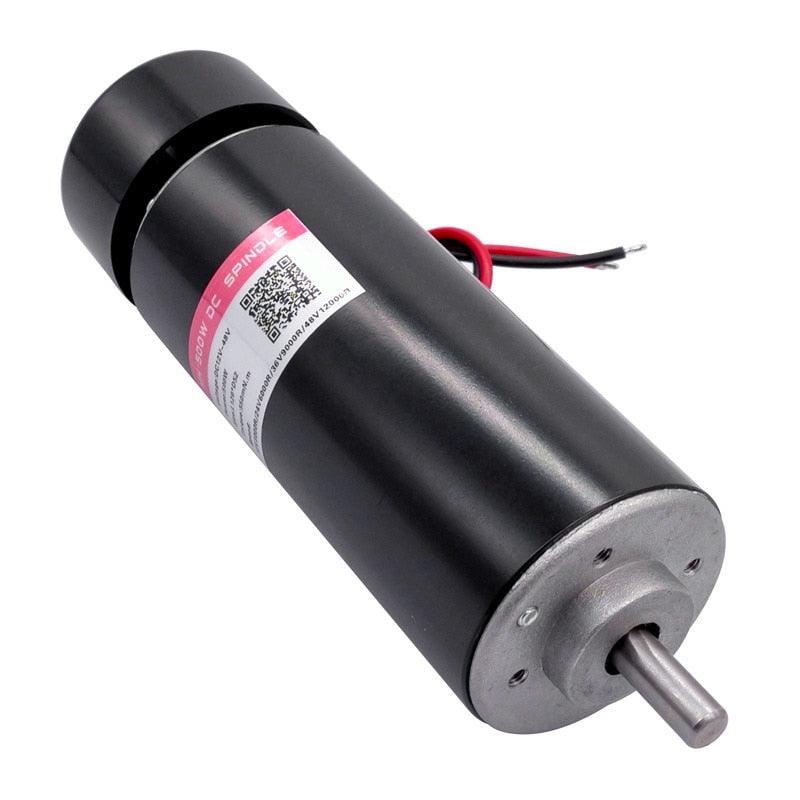

500W air cooled spindle motor 48V ER11 chuck CNC 100V 0.5Kw Spindle motor for Engraving

500W air cooled spindle motor 48V ER11 chuck CNC 100V 0.5Kw Spindle motor for Engraving,mini mill spindle

Operating Speed: 3000-12000r / min (12v-3000rpm, 24v-6000rpm, 36v-9000rpm, 48v-12000rpm

Model Number: 500W

Maximum Torque: 550MN. M

Drive: MOTOR

Application: Milling

Product parameters

Spindle motor: Electrophoresis black DC brush motor

Working voltage: 48V 100V

Power: 500W

Starting current: 10A

Locked rotor current: 35A

Speed: 3000-12000r / min (12v-3000rpm, 24v-6000rpm, 36v-9000rpm, 48v-12000rpm)

Torque: 550MN. M

Insulation resistance: > 2 megohm

Dielectric strength of insulation: 400V

Diameter: 52mm

Motor body length: 120mm

Color	48V, 100V
