4-20ma 0-5v 0-10v Analog output Perforated Three Phase Ampere Signal Transducer Online
Original price was: $55.50.$16.65Current price is: $16.65.
Description

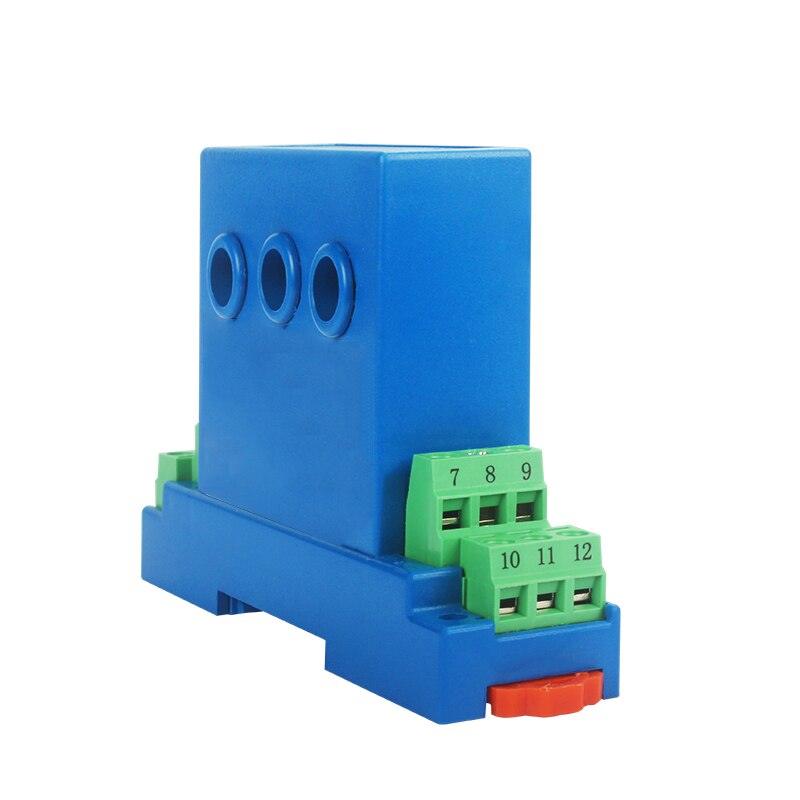

4-20ma 0-5v 0-10v Analog output Perforated Three Phase Ampere Signal Transducer
SPECIFICATIONS
3 Phase Current Transmitter 4-20ma 0-5v 0-10v Analog output Perforated Three Phase Ampere Signal Transducer
Supply Voltage: DC12V-24V
Response time: <200ms
Product name: 3 phase current transducer
Output signal: 4-20mA,0-5V,0-10V,1-5V
Origin: Mainland China
Operating Temperature: -30℃~+85℃
Model Number: ELCT-3P1
Installation method: DIN 35mm rail+ plane screw fixation
Input current range: AC 0-50A
Frequency range: 40-60HZ
Display Type: Analog Only
Dimensions: 4mm,8mm
DIY Supplies: ELECTRICAL
Certification: CE
Brand Name: KEJUN
Accuracy Class: 0.5%FS
3 Phase Current Transmitter 4-20ma 0-5v 0-10v Analog output Perforated Three Phase Ampere Signal Transducer
3 Phase Current Transmitter DATA SHEET DOWNLOAD
NOTES:
The 3 phase current transducer can make any range within AC0~50A.
If you need other current range, please contact me.
We can make special customization for you.
1>>. Working principle: Open loop direct measurement.
2>>. Usage: Used for measuring 3 phase AC current.
3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.
4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.
5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.
6>>. Full channel configuration,parameters customized.
Additional information
| Color | 4-20mA output, 0-5Vdc output, 0-10Vdc output, 1-5Vdc output |
|---|---|
| Measuring Range | 3xAC 0-5A, 3xAC 0-10A, 3xAC 0-15A, 3xAC 0-20A, 3xAC 0-25A, 3xAC 0-30A, 3xAC 0-35A, 3xAC 0-40A, 3xAC 0-45A, 3xAC 0-50A, Customization |
