Description

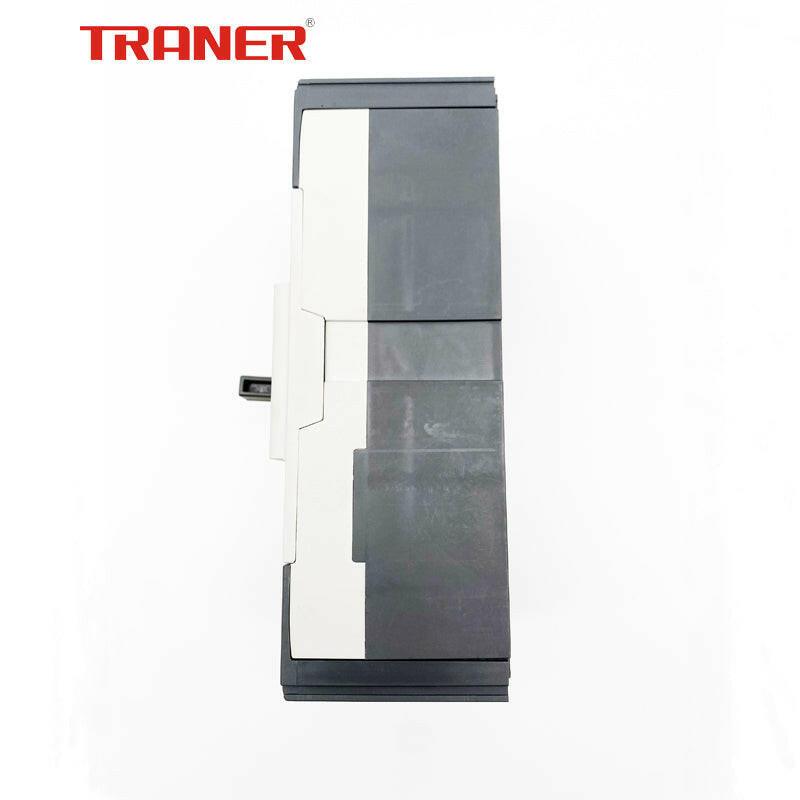

3 Pole MCCB Thermal Adjustable TRMF4-250 400V/50kA 3P 100-250A Mould Case Circuit Breaker

 Specification

3 Pole MCCB Thermal Adjustable TRMF4-250 400V/50kA 3P 100-250A Mould Case Circuit Breaker 200 amp breaker,

please send us email to: [email protected] for bulk purchasing

About this item

• Thermal Adjustable Type: Min 0.8In~Max 1In
• Distribute Electric Energy – Mainly used to distribute electric energy and protect circuits and power equipment from overload, short circuits, under voltage and other faults
• Good Flame Retardancy – The thermosetting material has good flame retardancy, will only gradually carbonize even if encounters an open flame, and will not burn, so that is safe
• Suitable For Extreme Environments – Rated current for 100A, frequency is 50/60Hz. Environmental operating temperature from 20℃60℃, suitable for more extreme environments
• Short Circuit And Overload Protection – Possess the characteristics of small size, short circuit protection, overload protection, flame retardant shell, high segmentation, short arcing, etc.
• Protection Of Motor – Can also be used for infrequent starting and overload, short circuits and under voltage protection of the motor

Product Description

Item Type: Moulded Case Circuit Breaker
Model: TRMF4-250/3P

Dimension(L*W*H): 165x105x60mm
Material: Thermoplastic PA6+ contact copper
Frame Current(AF): 250A
Frequency: 50/60Hz
Rated Insulation Voltage (Ui): AC 400V
Rated Voltage (Ue): AC 400V
Rated Impulse Withstand Voltage (Uimp): 50KV
Ics=75%Icu Cat A
250a mccb,3pole mccb,160a mccb,200a mccb,mccb 3p 160a
Package List:

4x Insulation Barrier

2x Terminal Cover

1 x Circuit Breaker
1 x Screw Pack
