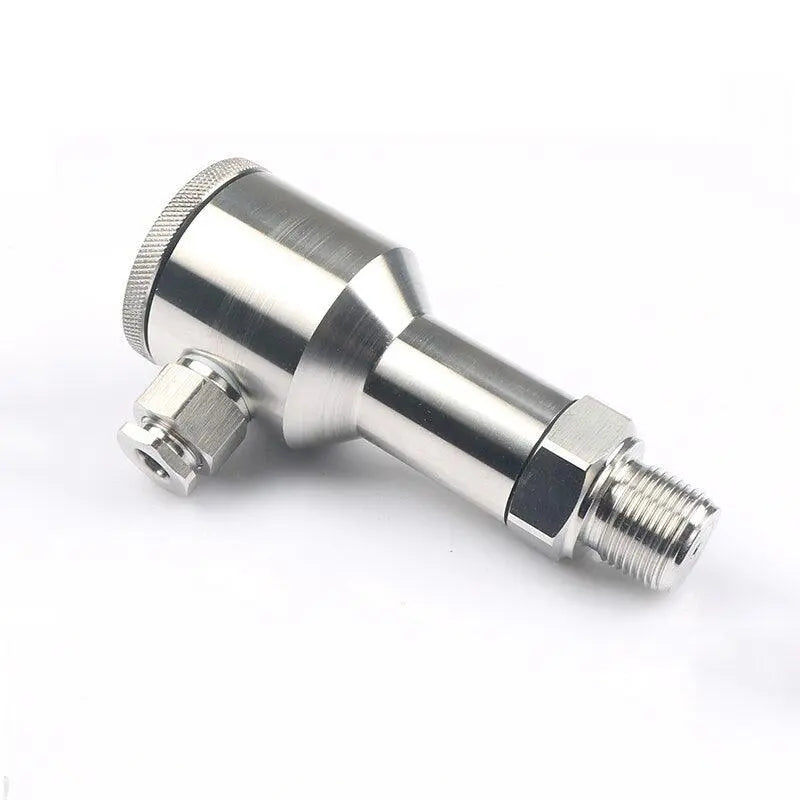

0-10 bar Anti-explosion Hydraulic Oil Fuel Pressure Sensor ip67 Air hvac Water Pressure Transmitter for lpg with RS485 modbus Hot on Sale

Original price was: $105.30.Current price is: $26.32.

SKU: US-7362143813825 Categories: , Tag:

Description

0-10 bar Anti-explosion Hydraulic Oil Fuel Pressure Sensor ip67 Air hvac Water Pressure Transmitter for lpg with RS485 modbus

SPECIFICATIONS

0-10 bar Anti-explosion Hydraulic Oil Fuel Pressure Sensor ip67 Air hvac Water Pressure Transmitter for lpg with RS485 modbus

Sensor: Diffusion silicon chip

Product name: Pressure transmitter

Power supply: DC24V

Output signal: RS485

Origin: Mainland China

Model Number: ELPT300

Measure range: -0.1~0~100MPa

Max Measuring Range: 400 Bar & Above

Material: Stainless Steel

Certification: CE,FCC

Brand Name: KEJUN

Accuracy: 0.2%FS

0-10 bar Anti-explosion Hydraulic Oil Fuel Pressure Sensor ip67 Air hvac Water Pressure Transmitter for lpg with RS485 modbus


This link is special for:
1. Measuring range: the one you choose
2. Output signal: RS485
3. Power supply: DC24V
4. Thread: M20*1.5
Anti-explosion DATA SHEET DOWNLOAD

1>>. Explosion-proof pressure transmitter used sensitive & high performance diffusion silicon piezoresistive chip.

2>>. The internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.

3>>. This pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.

4>>. This pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.

Additional information

Measuring Range

-0.1 to 1Mpa, 0-0.1Mpa, 0-0.16Mpa, 0-0.25Mpa, 0-0.4Mpa, 0-0.6Mpa, 0-1Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4Mpa, 0-6Mpa, 0-10Mpa, 0-16Mpa, 0-20Mpa, 0-25Mpa, 0-30Mpa, 0-40Mpa, 0-50Mpa, 0-60Mpa, Customization
