Sale!

0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa Hot on Sale

Original price was: $77.72.Current price is: $23.32.

SKU: US-7362144469185 Categories: , Tag:

Description

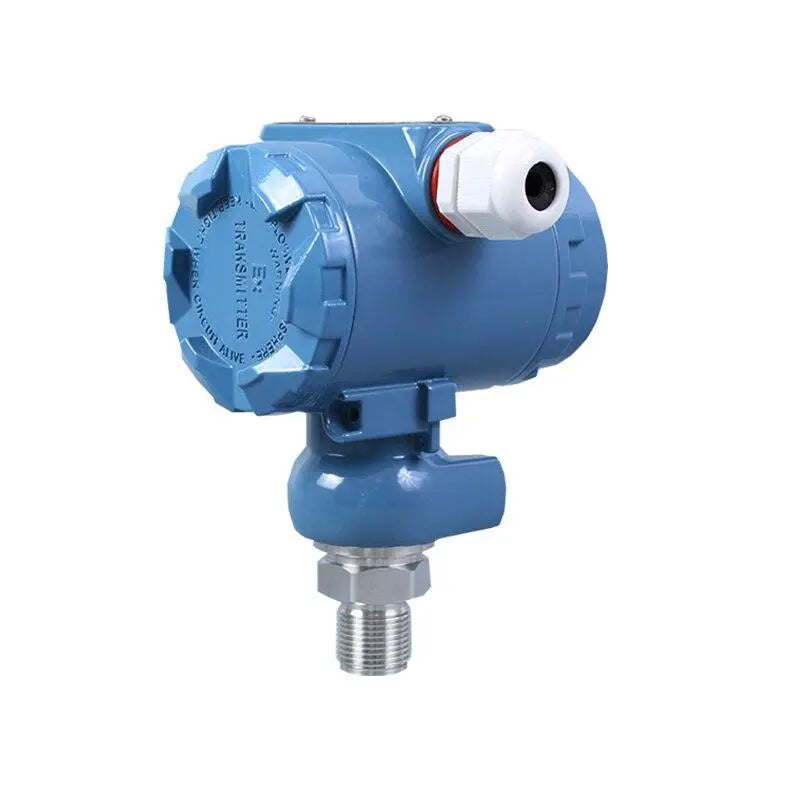

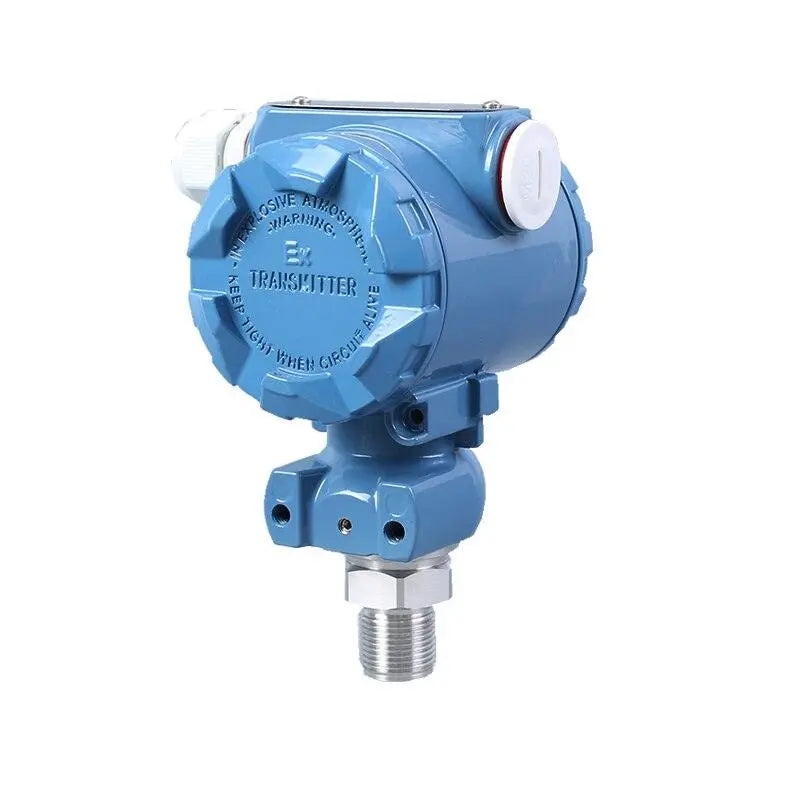

0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa

SPECIFICATIONS

0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa

Sensor: Diffusion silicon chip

Product name: Pressure transmitter

Power supply: DC24V

Output signal: 0-10V dc

Origin: Mainland China

Model Number: ELPT400

Measure range: -0.1~0~100MPa

Max Measuring Range: 400 Bar & Above

Material: Stainless Steel

Connection thread: M20*1.5

Certification: CE,FCC,RoHS

Brand Name: KEJUN

Accuracy: 0.2%FS

0-10 bar Absolute 0-10V Static Pressure Sensor Pneumatic Pressure Transducer Hydraulic Oil Pressure Transmitter 0-60Mpa

2088 PRODUCT DATA SHEET DOWNLOAD

This link is special for:
1. Measuring range: the one you choose
2. Output signal: 0-10V dc
3. Power supply: DC24V
4. Connection thread: M20*1.5

Notes:

What we can make:

1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).

2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc

4. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc

So: if you need other parameters, please contact me.

And tell me the measuring range, output signal, power supply, thread size.

We can make special customization for you.

Additional information

Measuring Range

-0.1 to 1Mpa, 0-0.1Mpa, 0-0.16Mpa, 0-0.25Mpa, 0-0.4Mpa, 0-0.6Mpa, 0-1Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4Mpa, 0-6Mpa, 0-10Mpa, 0-16Mpa, 0-20Mpa, 0-25Mpa, 0-30Mpa, 0-40Mpa, 0-50Mpa, 0-60Mpa, Customization
